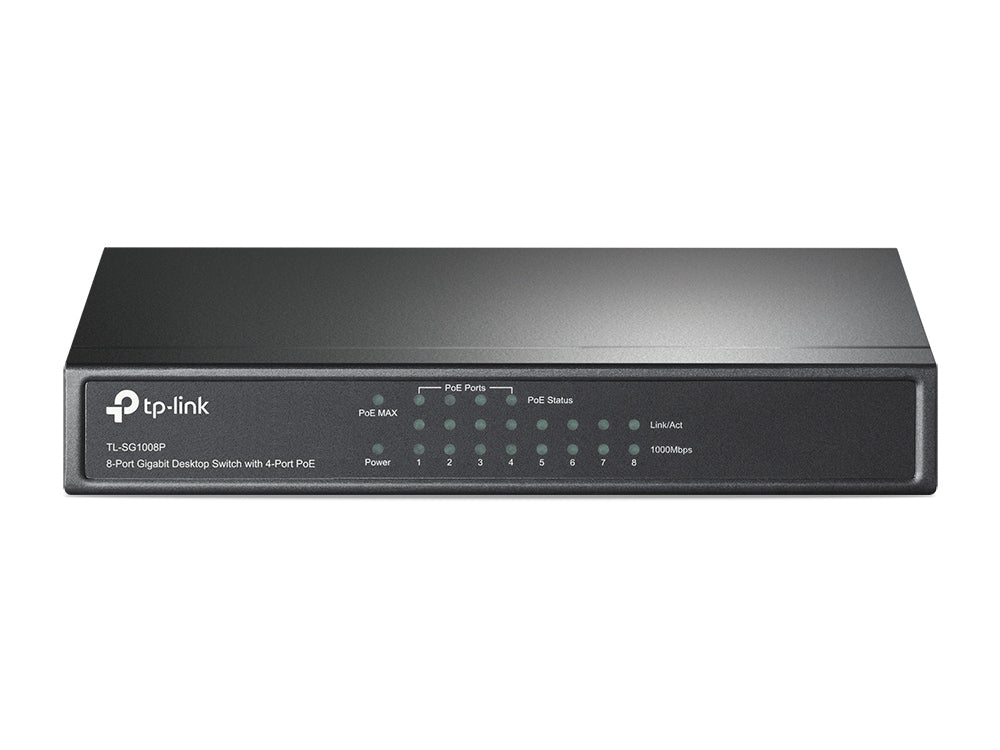

What This Product Does 8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection
Key Features:
- In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc
Benefits:
It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities
How This Product Works 4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function
These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs)
Overload Arrangement TL-SG1008P has the priority function which will help protect the system when the system power is overloaded
If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port
Port Priority Function Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded
For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red )
If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4
Easy To Use TL-SG1008P is easy to install and use
It requires no configuration and installation
With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network
