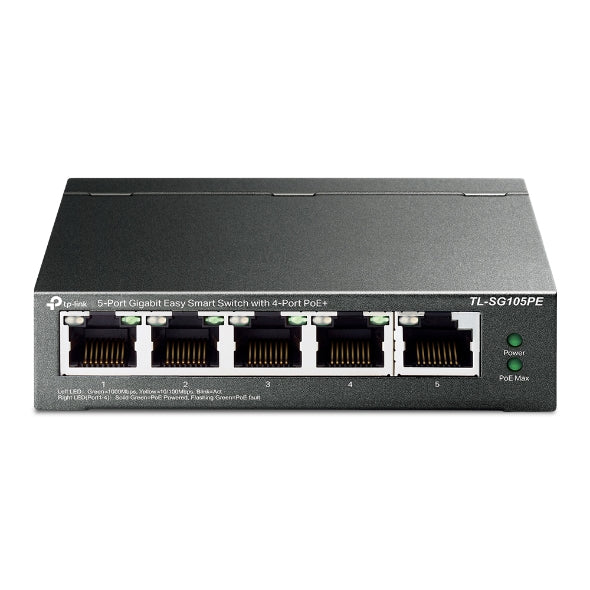

The TL-SG105PE is an 5-port Gigabit Easy Smart Switch with 4 PoE+ ports, represents a powerful upgrade from an unmanaged switch
Key Features:
- The TL-SG105PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones
- Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS
- Effective Management TL-SG105PE offers network monitoring for users to observe traffic behavior
- Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS
Benefits:
It is designed specially for small businesses that require simple network management and PoE function
Additionally, with port-based, tag-based and MTU VLAN, TL-SG105PE can improve security and meet more network segmentation requirements
Power Over Ethernet 4 of the 5 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function
These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs)
Overload Arrangement TL-SG105PE has the priority function which will help protect the system when the system power is overloaded
If all PoE PDs power consumption is >= 65 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port
Intelligent Power Management Priority (port 1>port 2>port 3>port 4): This function will help protect the system if the system power becomes overloaded
For example, Port 1, 2 and 4 are consuming 15.4 W respectively
If an additional PoE device with 20 W is inserted to port 3, the system will cut off the power of port 4 to compensate for the overload
With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105PE can identify and even locate connection problems on your business network
Also, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free
Additionally, to improve security and network performance, TL-SG105PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions
PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices
TL-SG105PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user
Easy to Use TL-SG105PE is easy to use and manage
Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports
Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance
Its compact size makes it ideal for desktops with limited space
Dynamic LED lights provide real-time work status display and basic fault diagnosis
