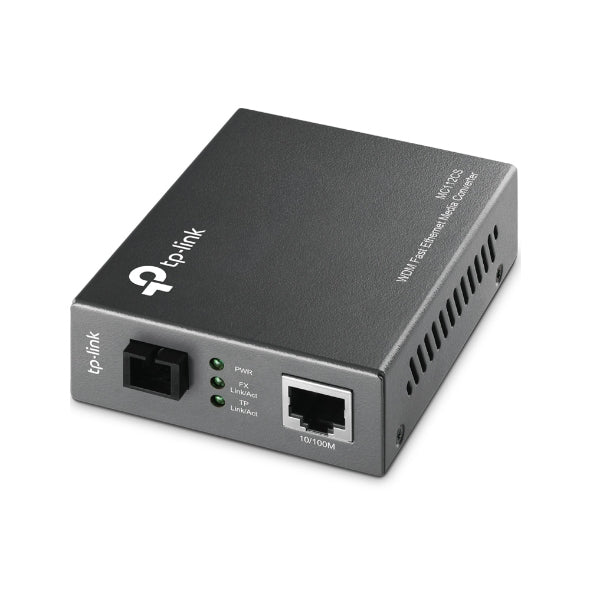

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media and vice versa
Benefits:
Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you
Designed under IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector
The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate
It works at 1310nm on transferring data and at 1550nm on receiving data
So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data
Another TP-Link s media converter MC111CS is just one of the examples to cooperate with MC112CS
Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port
The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.5 miles)
