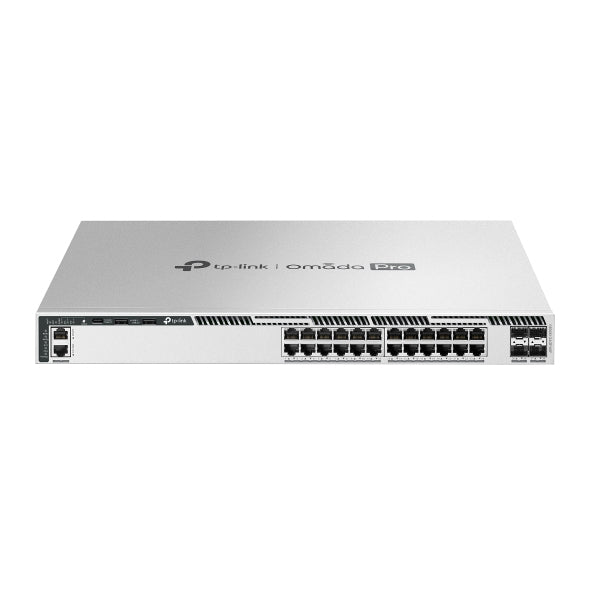

What This Product Does Omada Pro S6500-24GP4XF is a high-performance L3 managed PoE+ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, stacking options, and redundant power supply modules
Key Features:
- Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling
Benefits:
It boasts a 720 W PoE budget,*24 Gigabit RJ45 PoE+ ports, 4 10 Gbps SFP+ slots, physical stacking ability, and centralized management
Integrated with strong security, easy O&A, and extensive management features, S6500-24GP4XF offers a dependable networking solution for SMBs, enterprises, and ISPs
IEEE 802.3at/af-compliant Power over Ethernet 24 IEEE 802.3at/af-compliant PoE ports supply up to 720 W total power to 802.3at and 802.3af devices,* with each port supplying up to 30 W power
Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots
Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality
High-speed Connectivity and Powerful Stacking 24 Gigabit RJ45 ports and 4 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit
Physical stacking of up to 12 units enhances network performance and redundancy
Abundant Layer 3 Capabilities Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR
In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability
Comprehensive Security Functions Defend against a range of network threats with MACsec, Secure Boot, RADSEC, IMPB, SFTP, and 802.1X
MACsec works with the 802.1X protocol to ensure secure communication of all traffic on Ethernet links
Secure Boot protects the operating system from malicious attacks
Highly Available Two field-replaceable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture
ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing
Easy Operation and Maintenance The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency
Configuration Rollback restores previous settings if errors occur
Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions
Omada Pro Integration Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection
Omada Pro s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management
Omada Pro creates a highly scalable network all controlled from a single interface
Apart from central management via the web or Omada app, S6500-24GP4XF can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption
SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications
